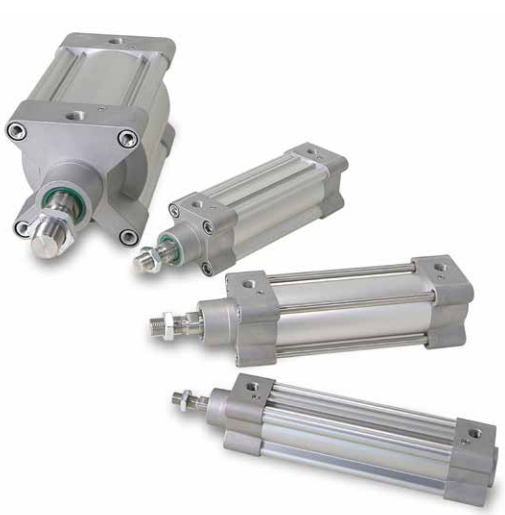

P1F SERIES Standard Cylinders ISO 15552

Technical Data
Product type Standard cylinder according to ISO 15552

Bore size 32 – 125 mm

Stroke length 5 – 2000 mm

Versions Double acting

Cushioning Adjustable air cushioning

Position sensing Proximity sensor

Installation ISO cylinder and piston rod mountings

Features

• Smooth profile or tie-rods design
• Bore sizes 32 – 125 mm
• Corrosion resistant design with end plates and barrel in

sandblast and anodized aluminum

• Magnetic piston standard
• Polyurethane seal technology inside
• Cushioning stainless steel screws on same side
• New adjustable pneumatic and mechanical cushioning

system reduces the noise caused by the impact of the

piston on the end covers (standard)

• Full range of mountings available
• Full range of ‘drop-in’ sensors available
